Toggle Clamps

Toggle Clamps are ideal for use in a variety of situations, including jigs, bench holdfasts, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners.

Bessey® Auto Adjust Toggles


No. Description
Price
Quantity
3254

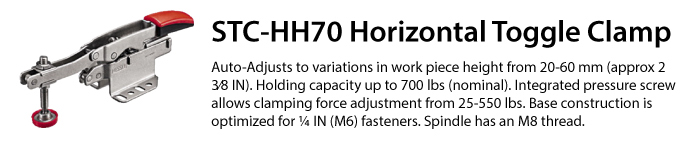

Bessey Toggle Clamp STC-HH70 l High Profile,Horizontal Flanged Base
$20.99

No. Description
Price
Quantity
3252

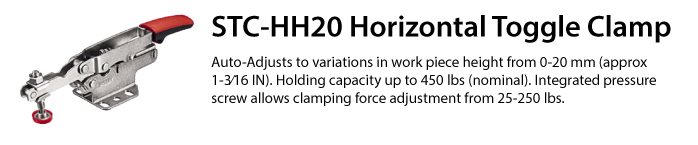

Bessey Toggle Clamp STC-HH20 Low Profile, Horizontal Flanged Base
$19.99

No. Description
Price
Quantity
3253
Bessey Toggle Clamp STC-HH50 Low Profile, Horizontal Flanged Base
$19.99

No. Description
Price
Quantity
9182
Bessey Toggle Clamp STC-HV20 Low Profile, Straight Base
$19.99

No. Description
Price
Quantity
9181
Bessey Toggle Clamp STC-HA20 Low Profile, Vertical Base
$19.99

No. Description
Price
Quantity
9183
Bessey Toggle Clamp STC-IHA15 Push Pull, Vertical Base
$21.99

No. Description
Price
Quantity
9184
Bessey Toggle Clamp STC-IHH15 Push Pull, Flanged Base
$21.99

No. Description
Price
Quantity
3255
Bessey Toggle Clamp STC-IHH25 Push Pull, Flanged Base
$21.99

No. Description
Price
Quantity
3277
Bessey Auto Adjust Toggle Clamp to Kreg Jig Adapter Plate
$10.99

Small T-Handle Toggle Clamp

Small T-Handle Toggle Clamp
  • Secure and release with lever
  • Ideal for bench holdfasts
  • Adjustable rubber pressure tips
  • Bottom of rubber foot adjusts from 1/8" above mounting the surface to 5/16'' below the mounting surface.
  • Total length with arm extended and T-handle up is 2-7/16'' L, Height 3-5/32'' with T-handle up in locked position (holding material down).
  • Mounting plate is 1-9/16'' W x 1'' L. Holding capacity is approximately 200 pounds
  • Does not include mounting screws

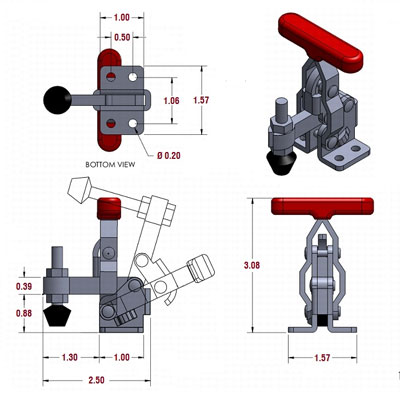

Small T-Handle Toggle Clamp Drawing

No. Description
Price
Quantity
3414
Small T-Handle Toggle Clamp
$10.99
Product Divider Image

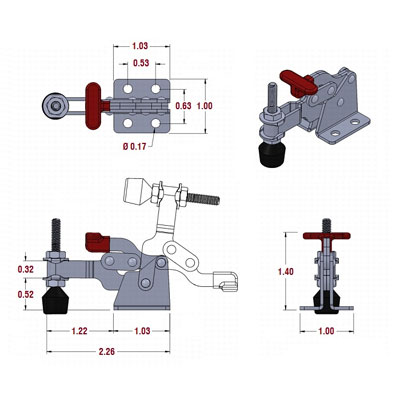

Mini T-Handle Toggle Clamp

Mini T-Handle Toggle Clamp
  • Secure and release with lever
  • Ideal for bench holdfasts
  • Adjustable rubber pressure tips
  • Unique finger grip T handle, Extremely compact design, U shaped clamping bar, Flanged base
  • 150 lbs holding capacity Arm opens 90° while handle moves 170°
  • Oil and Stain resistant red vinyl hand grip
  • Clamp supplied with #10-32 x 1-3/8 flat cushion neoprene cap spindle
  • Overall Height 1.40 In
  • Overall Length 2.26 In Height Under Arm 0.52 In
  • Does not include mounting screwsMini T-Handle Toggle Clamp Drawing
No. Description
Price
Quantity
3415
Mini T-Handle Toggle Clamp
$9.99
Product Divider Image

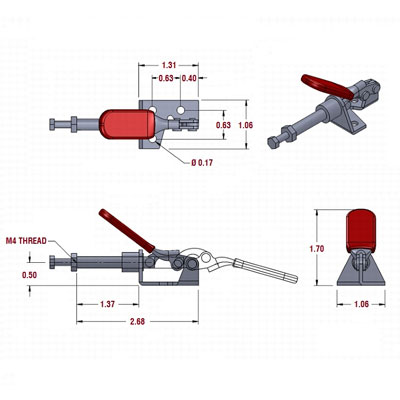

Mini Push Toggle


  • Secure and release with lever
  • Ideal for bench holdfasts
  • Adjustable rubber pressure tips
  • Light duty Plunger clamp that locks in extended or retracted position
  • 5/8" plunger travel
  • 100 lbs holding capacity
  • Oil and Stain resistant red vinyl hand grip
  • Does not include mounting screws

No. Description
Price
Quantity
3416
Mini Push Toggle
$10.99
Product Divider Image

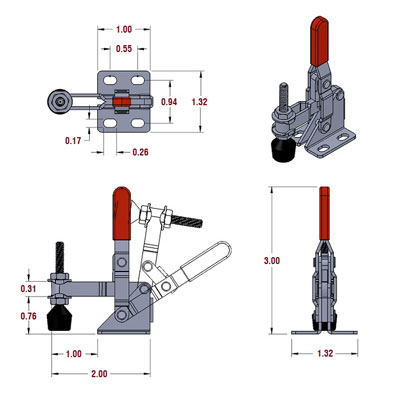

Mini Vertical Toggle


  • Secure and release with lever
  • Ideal for bench holdfasts
  • Adjustable rubber pressure tips
  • 110 lbs holding capacity
  • Arm opens 100° while handle moves 56°
  • Oil and Stain resistant red vinyl hand grip
  • Clamp supplied with #10-32 x 1-3/8 flat cushion neoprene cap spindle
  • Overall Height 3.00 In
  • Overall Length 2.00 In
  • Height Under Arm 0.76 In
No. Description
Price
Quantity
3417
Mini Vertical Toggle
$9.99
Product Divider Image

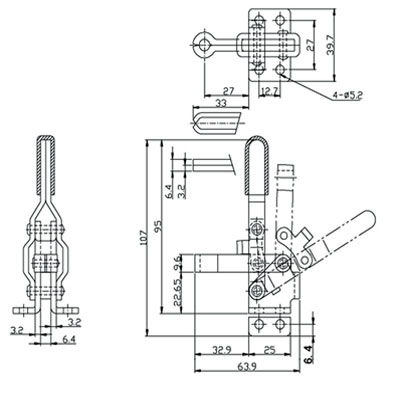

Small Vertical Toggle Clamp

Small Vertical Toggle Clamp
  • Secure and release with lever
  • Ideal for bench holdfasts
  • Adjustable rubber pressure tips
  • Extra Long U-Bar 2.27”
  • Flanged Base,
  • Straight Handle
  • Holding Capacity: 200 lbs.
  • Bar opens 100º, Handle 60º

No. Description
Price
Quantity
3418
Small Vertical Toggle Clamp
$10.99
Product Divider Image

Extra Small Toggle Clamp


  • Smallest hold down toggle clamp
  • U Shaped clamping bar, Flanged base
  • 60 lbs holding capacity
  • Arm opens 90° while handle moves 80°
  • Oil and Stain resistant red vinyl hand grip
  • Overall Height 0.67 In
  • Overall Length 3.02 In
  • Height Under Arm 0.30 In
No. Description
Price
Quantity
3419
Extra Small Toggle Clamp
$9.99
Product Divider Image

Small Toggle Clamp
200 lb Holding Capacity

Small Horizontal Handle Toggle Clamp 200 lb Capacity Image



1/4"  Spindle Horizontal Handle Quick Release Toggle Clamps are ideal for use in a variety of situations, including jigs, bench holdfasts, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners. (Not Included)

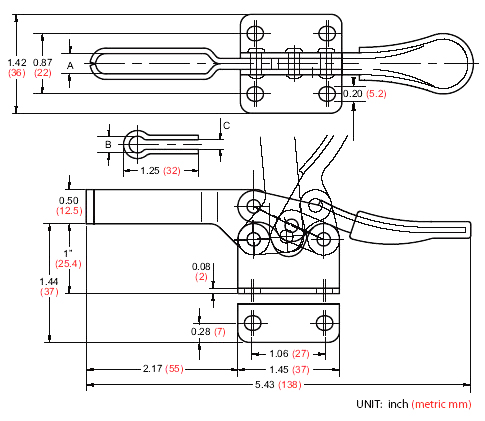

Small Horizontal Handle Toggle Clamp 200 lb Capacity Drawing

No. Description
Price
Quantity

1147

1/4"  Spindle Horizontal Handle Quick Release Toggle Clamp

$9.99
Product Divider Image

Large Toggle Clamp
500 lb Holding Capacity



Large Toggle Clamp  500 lb Holding Capacity



5/16"  Spindle Horizontal Handle Quick Release Toggle Clamps are ideal for use in a variety of situations, including jigs, bench holdfasts, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners. (Not Included)

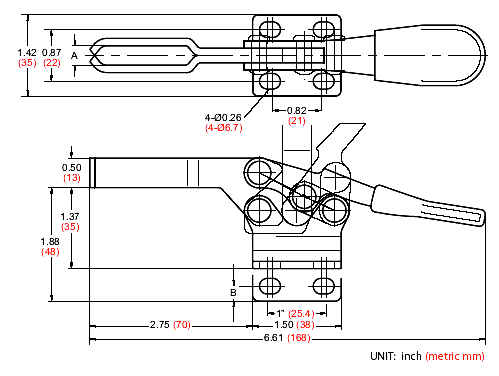

Large Horizontal Handle Toggle Clamp 500 lb Capacity Drawing

No. Description
Price
Quantity

1148

5/16"  Spindle Horizontal Handle Quick Release Toggle Clamp

$10.99
Product Divider Image

Push / Pull Toggle Clamp
400 lb Holding Capacity

Push Pull Toggle Clamp



5/16" Piston Push / Pull Toggle Clamp can be used to pull or push over a travel range of 1- 1/4". Quick Release Toggle Clamps are ideal for use in a variety of situations, including jigs, bench holdfasts, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners. (Not Included)

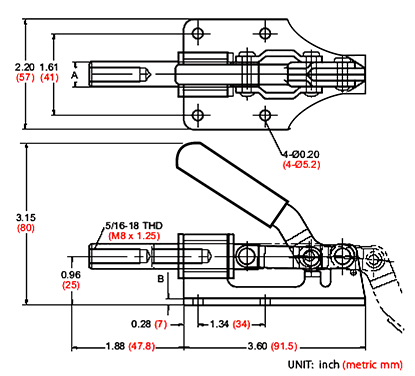

Push Pull Toggle Clamp Drawing

No. Description
Price
Quantity

1149

5/16" Piston Push / Pull Toggle Clamps

$11.99
Product Divider Image

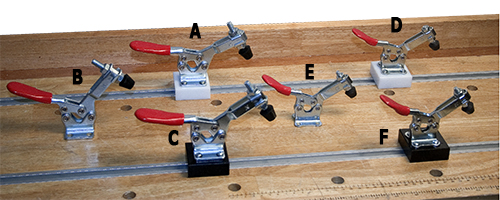

Mounted Toggle Clamps


Mounted Toggle Clamps



These compact clamps can be installed on workbenches, tool fixtures, or moveable bases so they can be quickly set and engaged to hold your work. Mounted toggles (A & D) work with our HD T-track. Mounted toggles (C & F) work with our mini T-track . Unmounted toggles (B & E) can be mounted to any jig with screws (not included). All toggles come with adjustable rubber pressure tips.
No. Description
Price
Quantity
1151
(A) large mounted toggle clamp with 3/8”x16 bolt (white)
$14.99
1148
(B) B large toggle clamp
$10.99
1154
(C) large mounted toggle clamp with 1/4”x20 bolt (black) .
$14.99
1150
(D) small mounted toggle clamp with 3/8”x16 bolt (white)
$12.99
1147
(E) small toggle clamp
$9.99
1153
(F ) small mounted toggle clamp with 1/4”x20 bolt (black)
$12.99
Product Divider Image

Toggle Clamp Foot

Toggle Clamp Foot



This oversized clamping foot provides more stable clamping pressure and does not mar on soft woods. Swivel-action foot is perfect for clamping angled stock, and measures 1-5/8" in diameter. The clamp foot will fit t most toggle clamps. Toggle clamp not included.



No. Description
Price
Quantity

1160

2" long bolt clamp foot 5/16" x 18 tpi

$4.99

1161

6" long bolt clamp foot 5/16" x 18 tpi

$5.99

1394
2" long bolt clamp foot 1/4" x 20 tpi
$4.99

1395
6" long bolt clamp foot with 1/4" x 20 tpi
$5.99

1396
2" long bolt clamp foot for push toggles 8mm
$4.99
